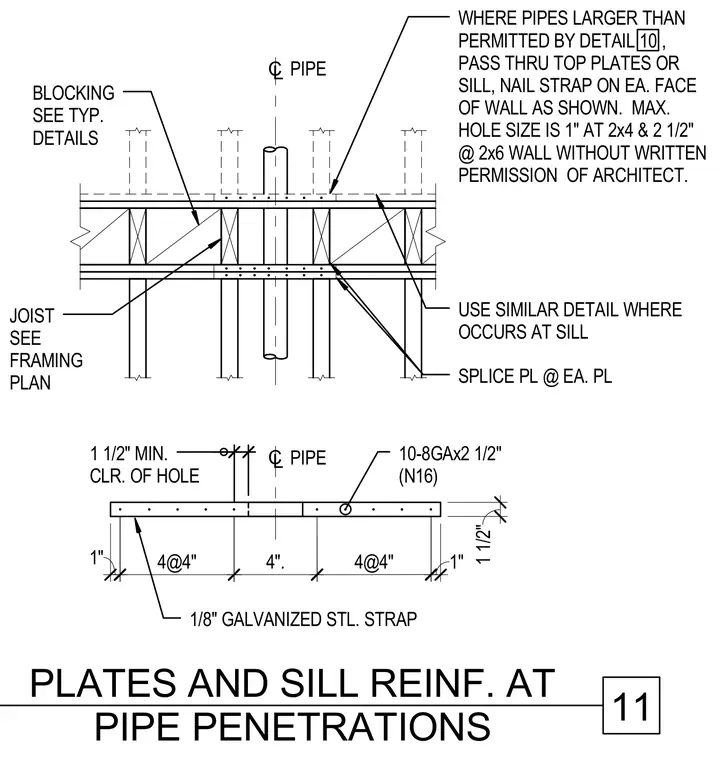

An eighth-inch galvanized steel strap measuring two and one-half inches wide is nailed to each face of the wall at pipe penetrations through wood top plates or sills. The strap is fastened with sixteen eight-gauge nails and maintains a one and one-half inch minimum clearance from the hole edge. Blocking and joists are installed per framing plans, with a splice plate located at each plate. Maximum unpermitted hole sizes are limited to one inch for two-by-four walls and two and one-half inches for two-by-six walls.
1/8" GALVANIZED STL. STRAP 10-8GAx2 1/2" (N16) 1 1/2" MIN. CLR. OF HOLE JOIST SEE FRAMING PLAN BLOCKING SEE TYP. DETAILS WHERE PIPES LARGER THAN PERMITTED BY DETAIL , PASS THRU TOP PLATES OR SILL, NAIL STRAP ON EA. FACE OF WALL AS SHOWN. MAX. HOLE SIZE IS 1" AT 2x4 & 2 1/2" @ 2x6 WALL WITHOUT WRITTEN PERMISSION OF ARCHITECT. USE SIMILAR DETAIL WHERE OCCURS AT SILL SPLICE PL @ EA. PL CL PIPE 10 1 1/2" CL PIPE 1 1/2" 1" 4@4" 4". 1" 4@4" 11 PLATES AND SILL REINF. AT PIPE PENETRATIONS
