Structural · S-C6QAM

Bolted Beam to Column Moment Connection with Slip Critical Bolts

Elements

Connections

About this detail

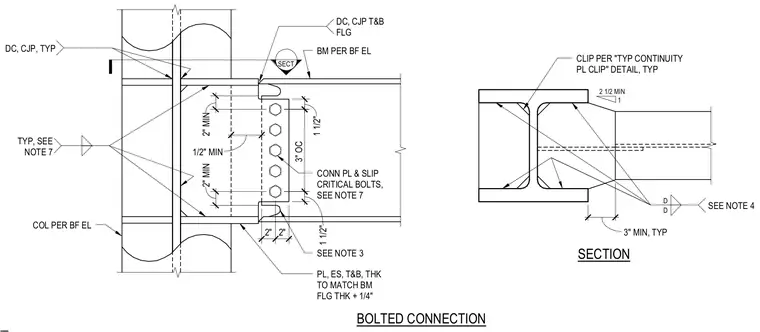

A structural steel beam frames into a column using a connection plate and slip-critical bolts with top and bottom flange connections welded via complete joint penetration welds. Continuity plates match the beam flange thickness plus one-quarter inch and feature clipped corners detailed per standard continuity plate clip requirements. Weld sizes and configurations are detailed with complete joint penetration welds at the top and bottom flanges. Edge distances, bolt spacings at three inches on center, and minimum clearances are specified for the web connection plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
