Metal decking runs parallel to a supporting steel beam. The metal deck is welded to the steel beam per the specifications. A closure strip of the same gauge as the metal deck is provided by the deck manufacturer as required. Dimensional clearances require two inches minimum at a single row of studs and five inches minimum at a double row of studs.

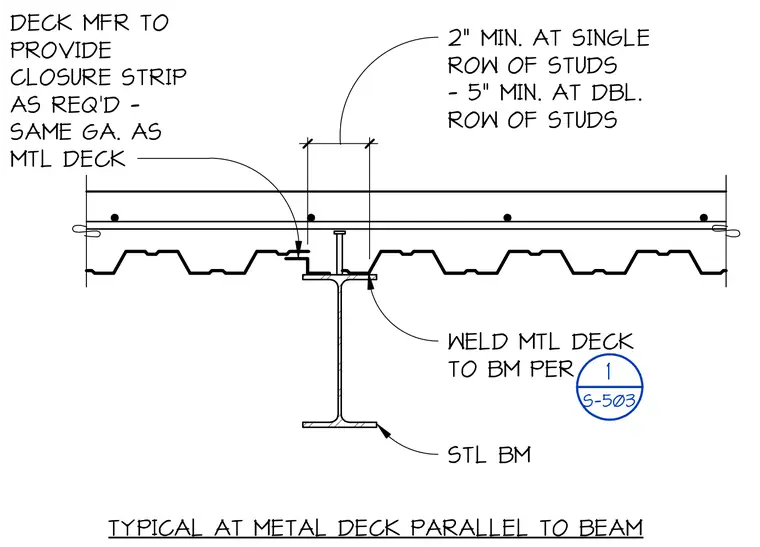

2" MIN. AT SINGLE ROW OF STUDS - 5" MIN. AT DBL. ROW OF STUDS WELD MTL DECK TO BM PER DECK MFR TO PROVIDE CLOSURE STRIP AS REQ'D - SAME GA. AS MTL DECK TYPICAL AT METAL DECK PARALLEL TO BEAM STL BM 1 S-503
