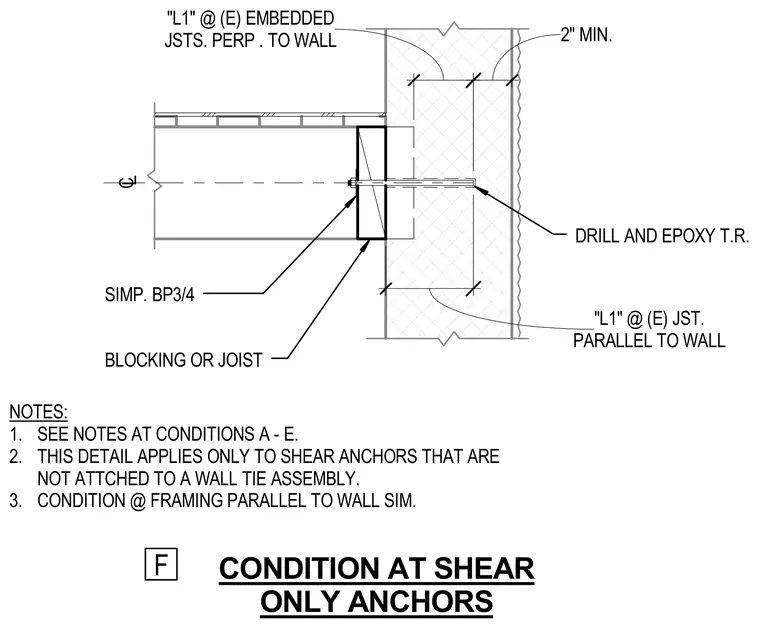

Wood blocking or joist framing runs parallel to the wall, secured by a drilled and epoxy-grouted threaded rod anchor. A bearing plate distributes the load at the face of the blocking. The detail applies to shear anchors that are not attached to a wall tie assembly, maintaining a two-inch minimum clearance.
DRILL AND EPOXY T.R. CONDITION AT SHEAR ONLY ANCHORS F NOTES: 1. SEE NOTES AT CONDITIONS A - E. 2. THIS DETAIL APPLIES ONLY TO SHEAR ANCHORS THAT ARE NOT ATTCHED TO A WALL TIE ASSEMBLY. 3. CONDITION @ FRAMING PARALLEL TO WALL SIM. L C BLOCKING OR JOIST 2" MIN. JSTS. PERP . TO WALL "L1" @ (E) EMBEDDED PARALLEL TO WALL "L1" @ (E) JST. SIMP. BP3/4
