The concrete slab on grade rests on a four-inch layer of crushed rock over eighteen inches of non-expansive soil fill. An ASTM E 1745 Class C vapor barrier separates the concrete from the crushed rock sub-base. Steel reinforcing is centered in the slab as specified per plan.

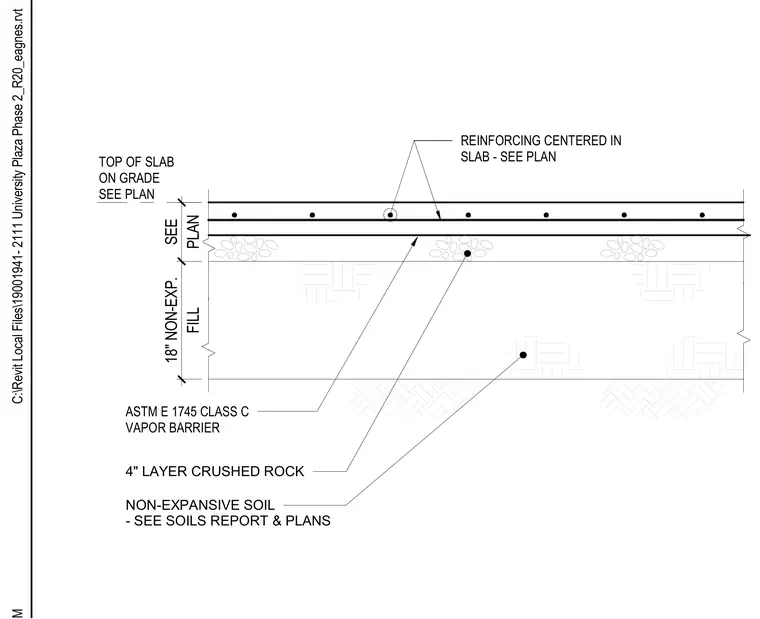

TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL - SEE SOILS REPORT & PLANS ASTM E 1745 CLASS C VAPOR BARRIER 4" LAYER CRUSHED ROCK REINFORCING CENTERED IN SLAB - SEE PLAN FILL 18" NON-EXP. PLAN SEE . C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt
