Concrete Door Jamb Guard Protection Angle

Materials

Steel

Elements

Doors

Connections

Welded Connection

About this detail

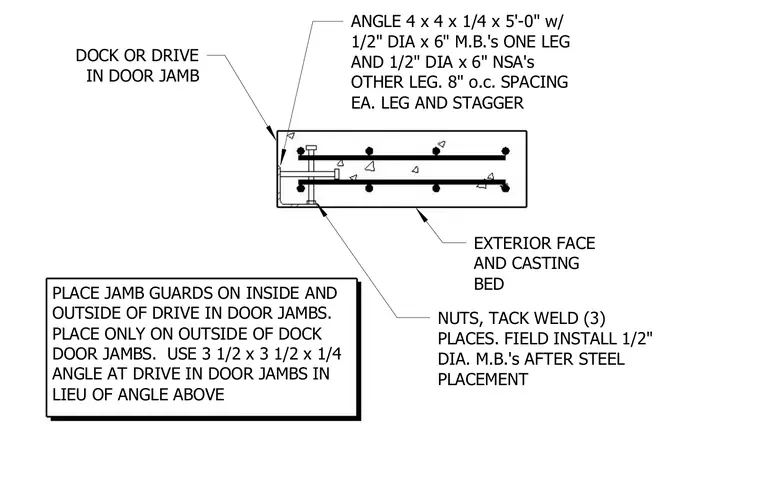

A steel angle door jamb guard is embedded in a concrete door jamb at a dock or drive-in door. The assembly features a 4x4x1/4-inch steel angle five feet long, secured with half-inch diameter by six-inch machine bolts on one leg and half-inch diameter by six-inch cast-in anchors on the other leg, spaced eight inches on center and staggered. Nuts are tack-welded in three places, and half-inch machine bolts are installed in the field after steel placement. For drive-in door jambs, a smaller 3-1/2 x 3-1/2 x 1/4-inch angle is used, with jamb guards placed on both the inside and outside of the jambs, while dock doors receive guards only on the exterior face.
