A wide flange beam connects to a moment frame or drag beam using a full-height shear connection plate sized per schedule. One slip-critical bolt is added at the top and bottom, with a full row of bolts utilized at drag and moment frame beams. A stiffener plate matching the thickness of the connection plate is provided on the supporting member. Beams ranging from W16 minimum to W21 maximum are accommodated for one-sided conditions.

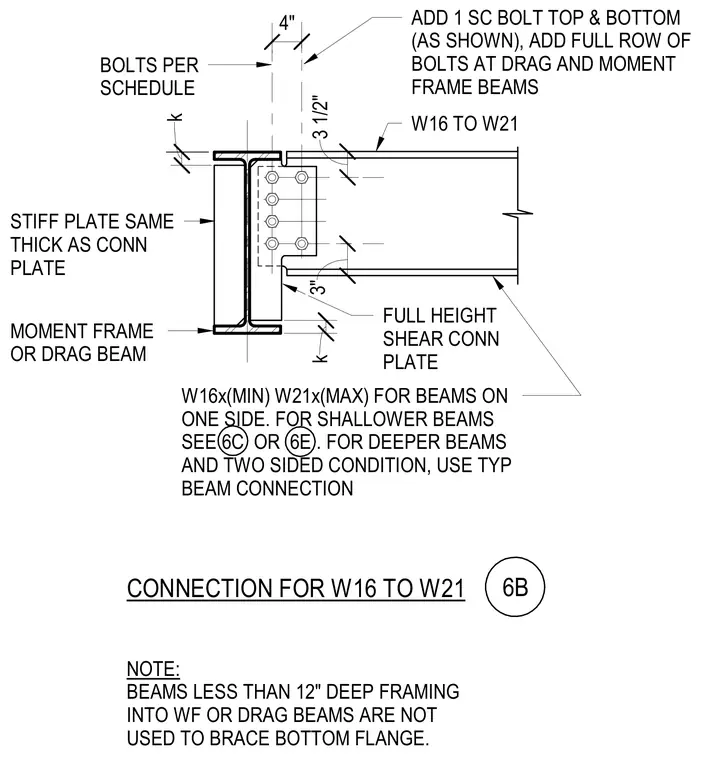

CONNECTION FOR W16 TO W21 ADD 1 SC BOLT TOP & BOTTOM (AS SHOWN), ADD FULL ROW OF BOLTS AT DRAG AND MOMENT FRAME BEAMS STIFF PLATE SAME THICK AS CONN PLATE FULL HEIGHT SHEAR CONN PLATE BOLTS PER SCHEDULE W16x(MIN) W21x(MAX) FOR BEAMS ON ONE SIDE. FOR SHALLOWER BEAMS SEE 6C OR 6E . FOR DEEPER BEAMS AND TWO SIDED CONDITION, USE TYP BEAM CONNECTION NOTE: BEAMS LESS THAN 12" DEEP FRAMING INTO WF OR DRAG BEAMS ARE NOT USED TO BRACE BOTTOM FLANGE. MOMENT FRAME OR DRAG BEAM k 4" W16 TO W21 3" k 6B 3 1/2"
