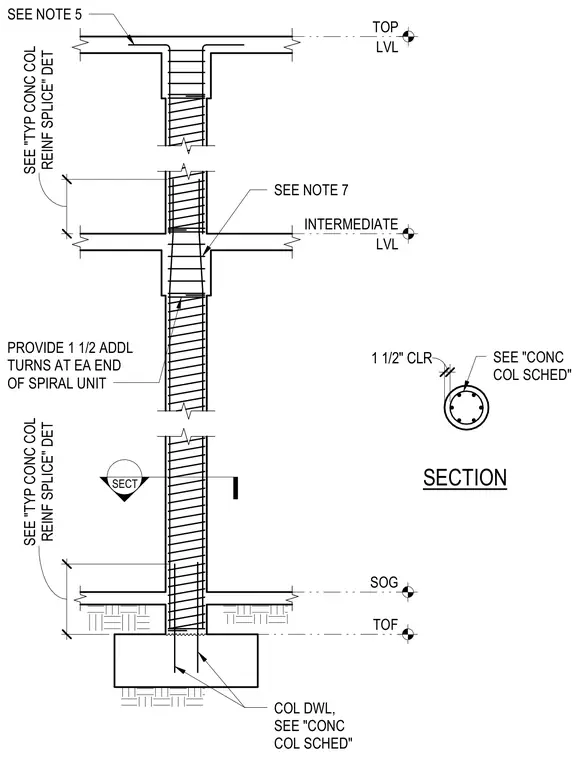

A reinforced concrete column extends upward from a concrete footing with column dowels sized per the concrete column schedule. The column shaft features continuous vertical reinforcement enclosed by spiral ties, requiring one and one-half additional turns at each end of the spiral unit. A cross-section details a one-and-a-half-inch clearance to the vertical bars. Intermediate level and top level framing connect into the column with specified reinforcement lap splices and detailing notes.
SECT 14 3/4" PROVIDE 1 1/2 ADDL TURNS AT EA END OF SPIRAL UNIT COL DWL, SEE "CONC COL SCHED" SEE NOTE 5 SEE NOTE 7 SECTION 1 1/2" CLR SEE "CONC COL SCHED" 19 1/8" TOF SOG LVL INTERMEDIATE LVL TOP SEE "TYP CONC COL REINF SPLICE" DET SEE "TYP CONC COL REINF SPLICE" DET
