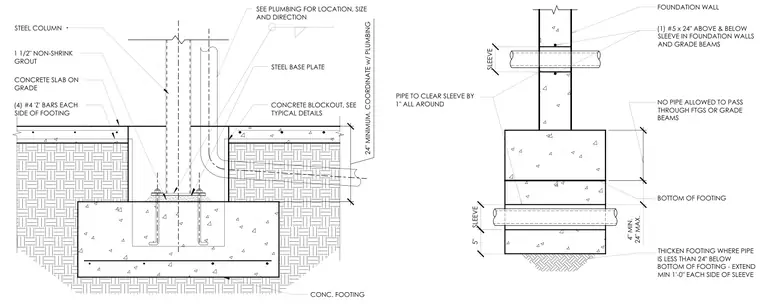

A steel column sits on a steel base plate anchored to a concrete footing with one and a half inches of non-shrink grout beneath. A concrete slab on grade interfaces with the footing blockout, while four number four Z-bars reinforce each side of the footing. A separate wall section details a pipe passing through a foundation wall with one inch of clearance all around within a five-inch sleeve. Number five reinforcing bars at twenty-four inches are placed above and below the sleeve in foundation walls and grade beams. Footings are thickened where pipes run less than twenty-four inches below the bottom of the footing, extending a minimum of one foot on each side of the sleeve.
PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE CONCRETE BLOCKOUT, SEE TYPICAL DETAILS STEEL BASE PLATE STEEL COLUMN 1 1/2" NON-SHRINK GROUT CONC. FOOTING SEE PLUMBING FOR LOCATION, SIZE AND DIRECTION CONCRETE SLAB ON GRADE 24" MINIMUM, COORDINATE w/ PLUMBING 5" SLEEVE 4" MIN. 24" MAX. SLEEVE (4) #4 'Z' BARS EACH SIDE OF FOOTING
