Structural · S-C64Z5

BRBF Base Plate Connection

Materials

Elements

Walls Floors / Slabs Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Embed Plate

About this detail

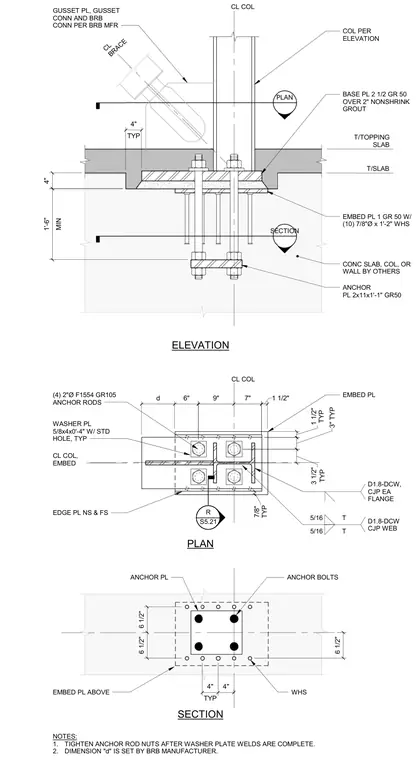

A buckling-restrained braced frame base plate connection anchors into a concrete foundation slab. A 2-1/2 inch thick Grade 50 base plate rests over a 2-inch nonshrink grout layer, supported by an embed plate with welded headed studs and lower anchor plates. Four 2-inch diameter ASTM F1554 Grade 105 anchor rods secure the base with 5/8x4x0'-4" washer plates featuring standard holes. The column flange and web connections utilize complete joint penetration welds detailed per AWS D1.8-DCW. Anchor rod nuts are specified to be tightened only after washer plate welds are complete, with dimension "d" set by the buckling-restrained brace manufacturer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
