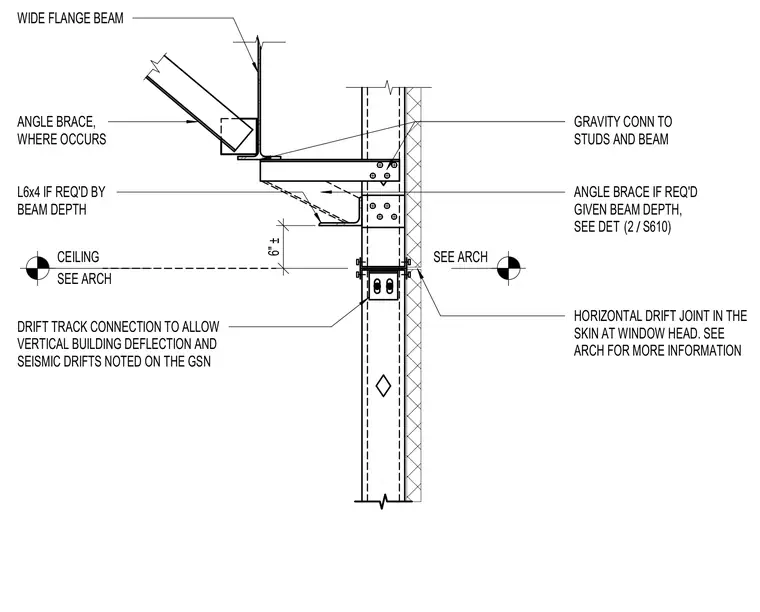

A wide flange beam connects to a solid wall through a gravity connection tied to studs and the beam web. An L6x4 angle brace is added depending on beam depth and field conditions. A horizontal drift joint is provided at the building skin near the window head to allow for vertical building deflection and seismic drift. A drift track connection accommodates differential movement as noted on structural general notes.
ANGLE BRACE, WHERE OCCURS WIDE FLANGE BEAM 6" ± CEILING SEE ARCH SEE ARCH GRAVITY CONN TO STUDS AND BEAM ANGLE BRACE IF REQ'D GIVEN BEAM DEPTH, SEE DET L6x4 IF REQ'D BY BEAM DEPTH DRIFT TRACK CONNECTION TO ALLOW VERTICAL BUILDING DEFLECTION AND SEISMIC DRIFTS NOTED ON THE GSN HORIZONTAL DRIFT JOINT IN THE SKIN AT WINDOW HEAD. SEE ARCH FOR MORE INFORMATION / (2 S610)
