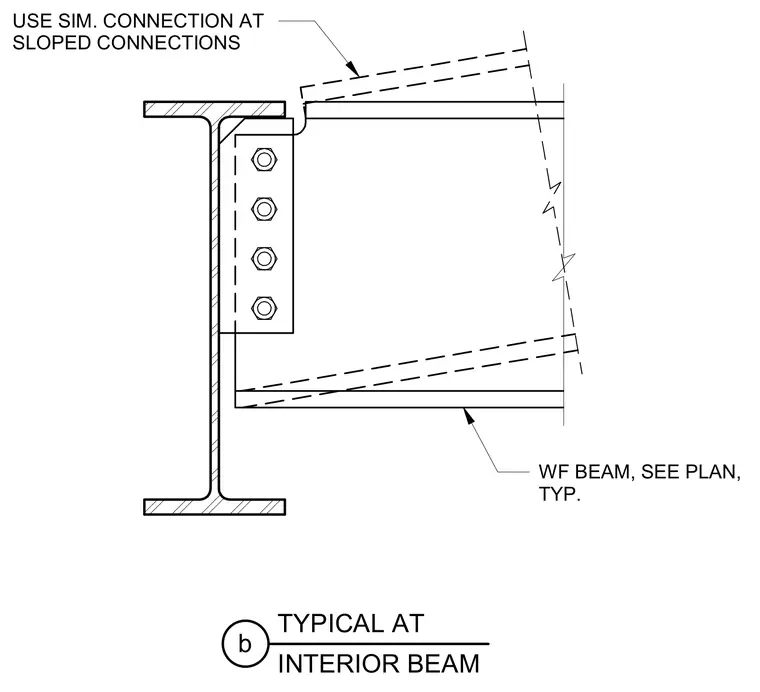

An interior wide-flange beam frames into a supporting structural steel column flange using a single-plate shear connection. A vertical shear tab is welded to the support and secured to the beam web with four high-strength bolts. Similar connection details apply to sloped framing conditions as indicated on the structural plans.
USE SIM. CONNECTION AT SLOPED CONNECTIONS WF BEAM, SEE PLAN, TYP. TYPICAL AT b INTERIOR BEAM
