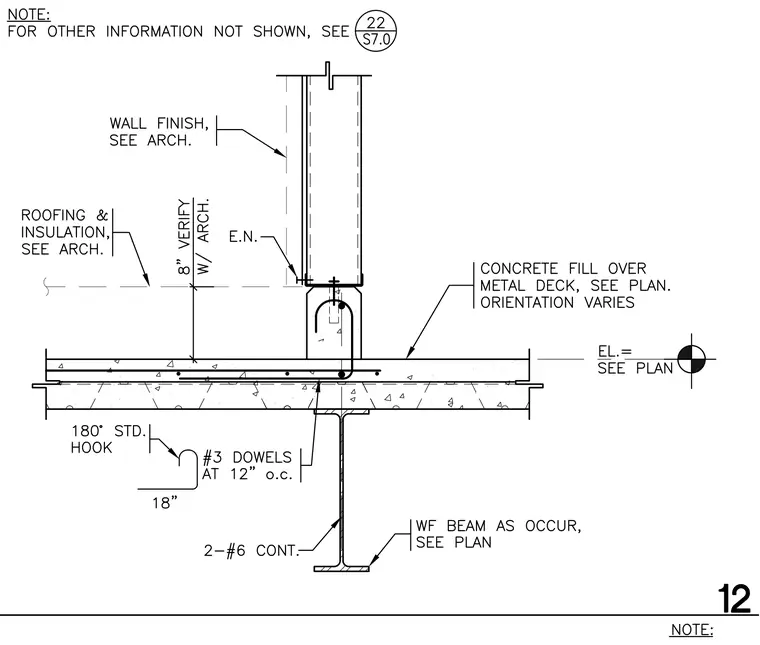

A cold-formed steel stud partition is supported on a concrete fill over metal deck slab with variable orientation. The concrete slab features number three dowels at twelve inches on center with one-hundred-eighty-degree standard hooks extending eighteen inches. Two continuous number six reinforcing bars are located at the wide-flange beam as it occurs per plan. Roofing, insulation, and wall finishes are coordinated per architectural drawings.
