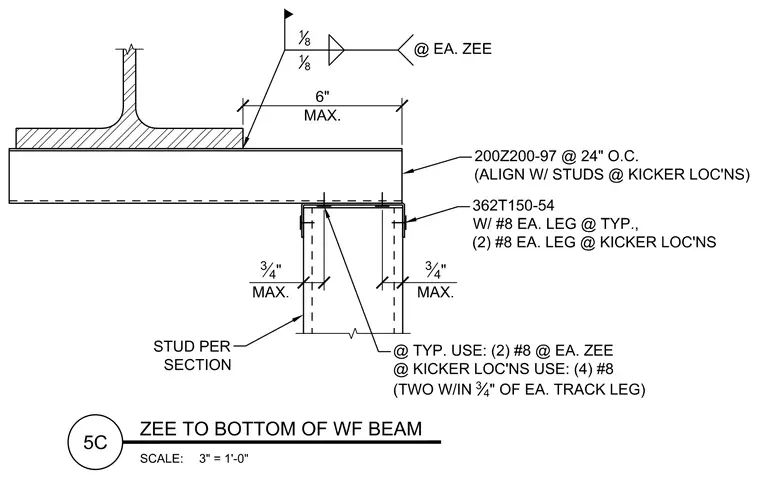

A 200Z200-97 cold-formed steel zee framing member is positioned against the bottom flange of a wide-flange beam and spaced at twenty-four inches on center, aligning with studs at kicker locations. A 362T150-54 track member caps the support stud per section below, secured with number eight screws at each leg typically and two number eight screws at each leg at kicker locations. The zee is welded to the wide-flange beam flange with one-eighth-inch fillet welds at each zee. Connection fastening includes two number eight screws at each zee typically, increasing to four number eight screws at kicker locations with two within three-quarters of an inch of each track leg.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
