An upper wide-flange column connects to a lower wide-flange column using a one-half-inch plate at the column flange matching the column width, extending two inches beyond the depth and width of the column below. Four three-quarter-inch-diameter A325 bolts at standard gauge secure the connection through the plate, with a thermal shim referenced per architectural drawings. Wide-flange beams frame into the assembly with the top of the beam coped as required for the column cap. Plates matching one-half the width of the column and matching the column flange thickness are welded to each side of the column with quarter-inch fillet welds on three sides.

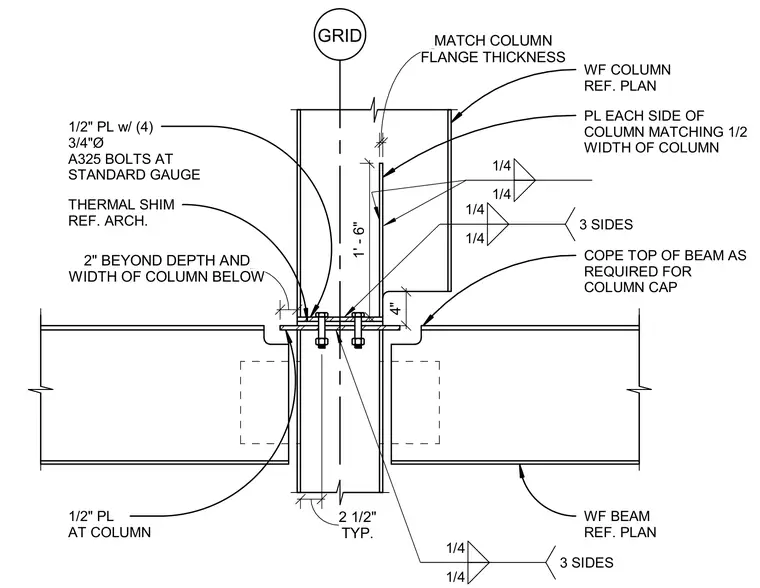

1' - 6" 4" GRID WF COLUMN REF. PLAN PL EACH SIDE OF COLUMN MATCHING 1/2 WIDTH OF COLUMN 1/4 1/4 1/4 1/4 3 SIDES COPE TOP OF BEAM AS REQUIRED FOR COLUMN CAP WF BEAM REF. PLAN TYP. 2 1/2" 1/4 1/4 3 SIDES 1/2" PL w/ (4) 3/4"Ø A325 BOLTS AT STANDARD GAUGE THERMAL SHIM REF. ARCH. 1/2" PL AT COLUMN FLANGE THICKNESS MATCH COLUMN WIDTH OF COLUMN BELOW 2" BEYOND DEPTH AND
