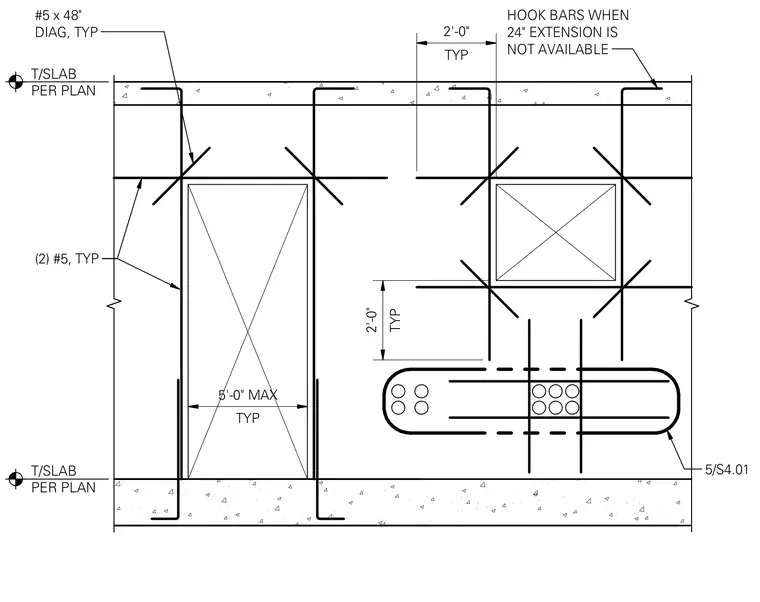

Reinforced concrete wall opening featuring number 5 diagonal bars at corners and two number 5 vertical bars at jambs. Hooked bars are provided with a two-foot extension or hook when a twenty-four-inch straight extension is unavailable. Openings are detailed with maximum five-foot spans and standard slab level indicators.
TYP 2'-0" HOOK BARS WHEN 24" EXTENSION IS NOT AVAILABLE (2) #5, TYP #5 x 48" DIAG, TYP TYP 2'-0" TYP 5'-0" MAX T/SLAB PER PLAN T/SLAB PER PLAN 5/S4.01
