Tilt-Up Concrete Wall Panel Joint and Reinforcing Details

Materials

Elements

About this detail

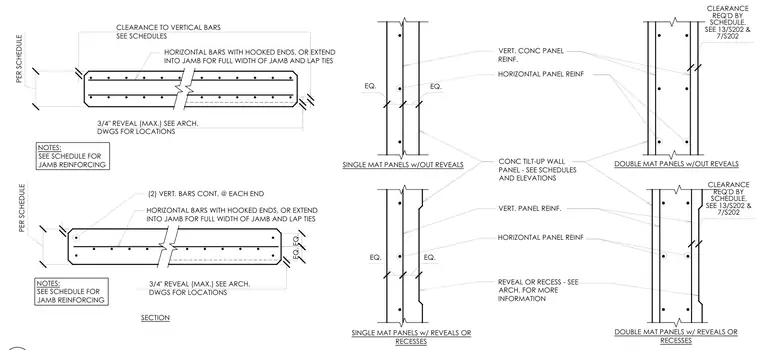

Concrete tilt-up wall panels incorporate single and double reinforcing mats with horizontal and vertical steel bars, configured with or without architectural reveals and recesses. Jamb conditions include two continuous vertical reinforcing bars at each end, with horizontal bars featuring hooked ends or extending across the full jamb width with lap ties. Panel joints maintain specified clearances to vertical bars per schedule, with maximum three-quarter-inch reveals located according to architectural drawings.
