Structural · S-C4ZVT

Slab Edge and Steel Beam at Curtain Wall Transition

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Curtain Walls Facades / Cladding Floors / Slabs Decks Arches Bracing Insulation Anchors / Embeds Connections / Plates

Connections

Bracing Connection

About this detail

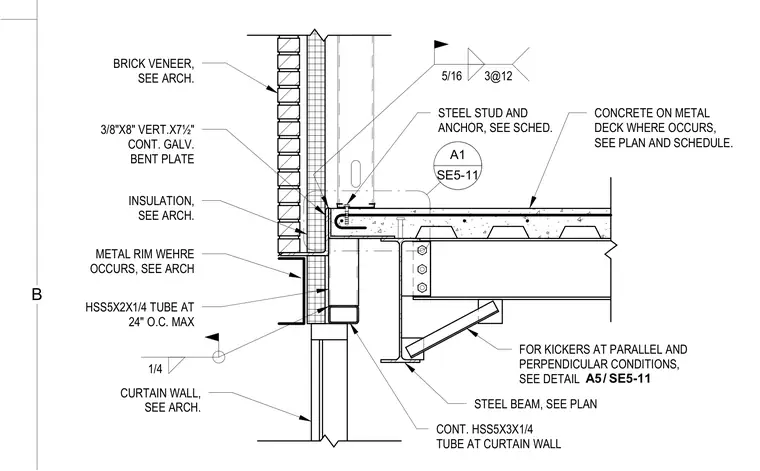

A concrete slab on metal deck bears on a structural steel beam, with concrete poured where indicated per plan and schedule. A continuous 3/8-inch by 8-inch vertical galvanized bent plate spans alongside a steel stud and anchor assembly, connecting to a brick veneer and insulation layer sized per architectural drawings. Below the slab edge, a continuous hollow structural section tube of size HSS5x3x1/4 supports the curtain wall transition, backed by additional HSS5x2x1/4 tubes spaced at a maximum of 24 inches on center. A metal rim is installed where required, and structural kickers are tied to the steel beam per detail A5 on sheet SE5-11. Welds are specified as 1/4-inch fillet welds at the tubular framing and 5/16-inch fillet welds spaced at 12 inches on center.
