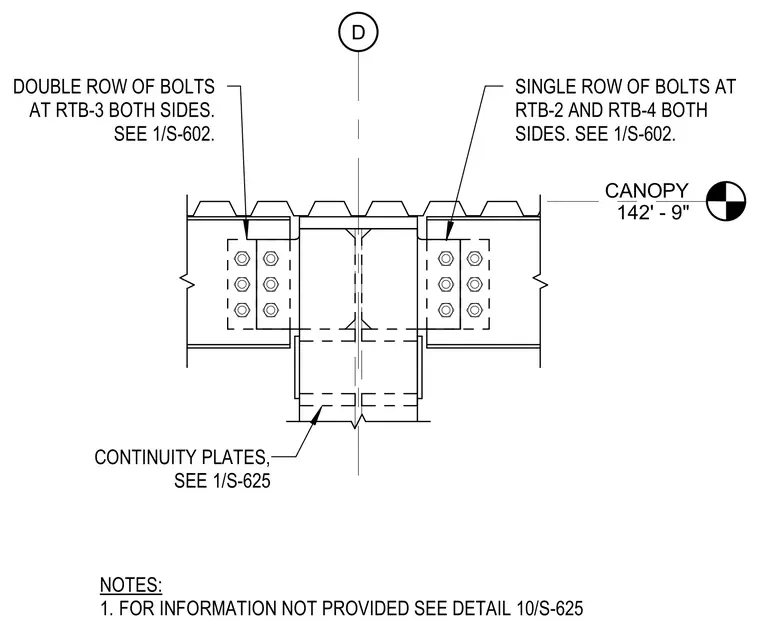

A canopy truss top chord frames into a vertical member using bolted connections and continuity plates. A single row of bolts connects members RTB-2 and RTB-4 on both sides, while a double row of bolts secures RTB-3 on both sides. Continuity plates are positioned within the vertical member as specified per the structural drawings.
D CANOPY 142' - 9" CONTINUITY PLATES, SEE 1/S-625 NOTES: 1. FOR INFORMATION NOT PROVIDED SEE DETAIL 10/S-625 SINGLE ROW OF BOLTS AT RTB-2 AND RTB-4 BOTH SIDES. SEE 1/S-602. DOUBLE ROW OF BOLTS AT RTB-3 BOTH SIDES. SEE 1/S-602.
