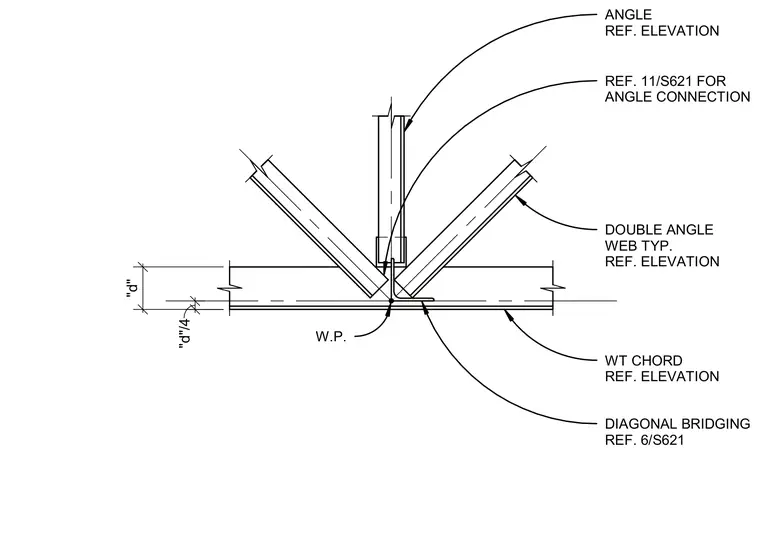

A WT section forms the bottom chord, framing into diagonal bridging members and a vertical angle. Double angle web members connect to the assembly with reference to the structural elevation. A work point is established at the intersection of the chord and web centerlines, dimensioned relative to the chord depth.
ANGLE REF. ELEVATION REF. 11/S621 FOR ANGLE CONNECTION DOUBLE ANGLE WEB TYP. REF. ELEVATION WT CHORD REF. ELEVATION W.P. "d"/4 "d" DIAGONAL BRIDGING REF. 6/S621
