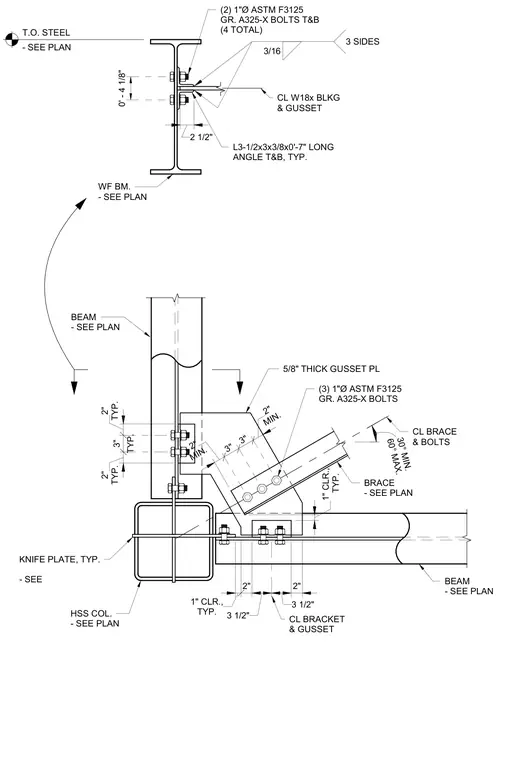

A horizontal brace connection occurs at a hollow structural section column and wide-flange beam intersection. A five-eighths inch thick gusset plate connects to the structural members using three one-inch diameter ASTM F3125 Grade A325-X bolts. Angles measuring three and a half by three by three-eighths inches are provided top and bottom, typically secured with four total one-inch diameter bolts. A two and a half inch knife plate connects into the wide-flange backing and gusset assembly with a three-sixteenths inch fillet weld on three sides. Brace alignment maintains standard clearances including a one-inch typical clearance and angular tolerances between thirty and sixty degrees.
BEAM - SEE PLAN HSS COL. - SEE PLAN L3-1/2x3x3/8x0'-7" LONG ANGLE T&B, TYP. 5/8" THICK GUSSET PL CL BRACE & BOLTS (3) 1"Ø ASTM F3125 GR. A325-X BOLTS BEAM - SEE PLAN 3/16 3 SIDES WF BM. - SEE PLAN 0' - 4 1/8" TYP. 2" TYP. 3" TYP. 2" TYP. 1" CLR., 2" 3 1/2" 3 1/2" 2" MIN. 2" 3" 3" MIN. 2" TYP. 1" CLR., CL BRACKET & GUSSET BRACE - SEE PLAN 60° MAX. 30° MIN. (2) 1"Ø ASTM F3125 GR. A325-X BOLTS T&B (4 TOTAL) CL W18x BLKG & GUSSET T.O. STEEL - SEE PLAN 2 1/2" KNIFE PLATE, TYP. - SEE
