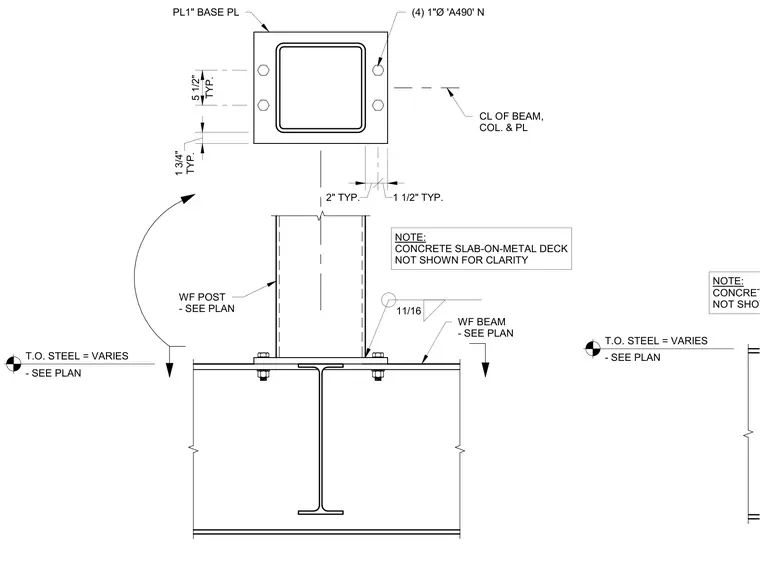

A wide-flange post lands on a wide-flange roof beam, secured by a 1-inch thick base plate and four 1-inch diameter A490 bolts. The base plate aligns with the centerlines of the beam and column. An 11/16-inch fillet weld connects the post to the base plate assembly. The concrete slab-on-metal deck is omitted for clarity, and top of steel elevations vary as sized per plan.
1 1/2" TYP. 2" TYP. TYP. 5 1/2" 11/16 WF BEAM - SEE PLAN (4) 1"Ø 'A490' N CL OF BEAM, COL. & PL PL1" BASE PL T.O. STEEL = VARIES - SEE PLAN WF POST - SEE PLAN NOTE: CONCRETE SLAB-ON-METAL DECK NOT SHOWN FOR CLARITY TYP. 1 3/4" T.O. STEEL = VARIES - SEE PLAN NOTE: CONCRETE SLAB-ON-METAL DECK NOT SHOWN FOR CLARITY
