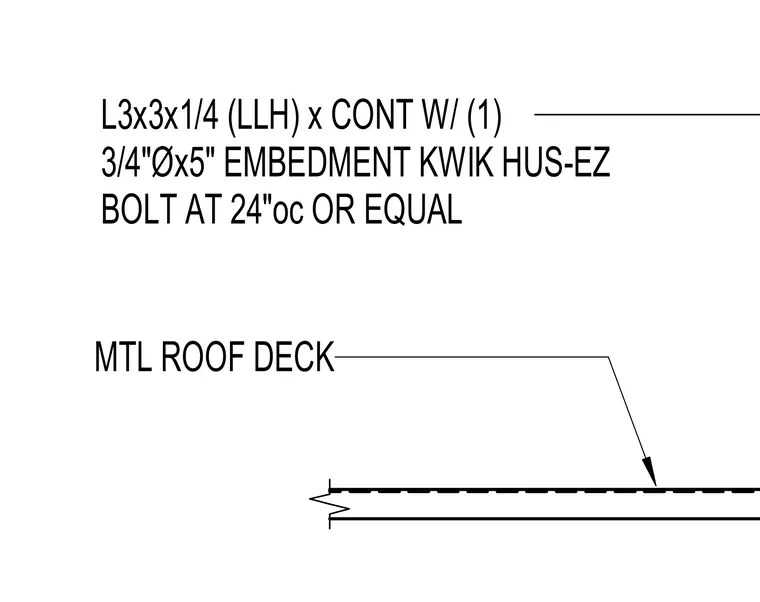

A continuous 3 inch by 3 inch by 1/4 inch long-leg horizontal steel angle is secured with 3/4 inch diameter by 5 inch embedment Kwik Hus-EZ bolts spaced at 24 inches on center or equal. This assembly provides a continuous edge or support condition for the metal roof deck.
