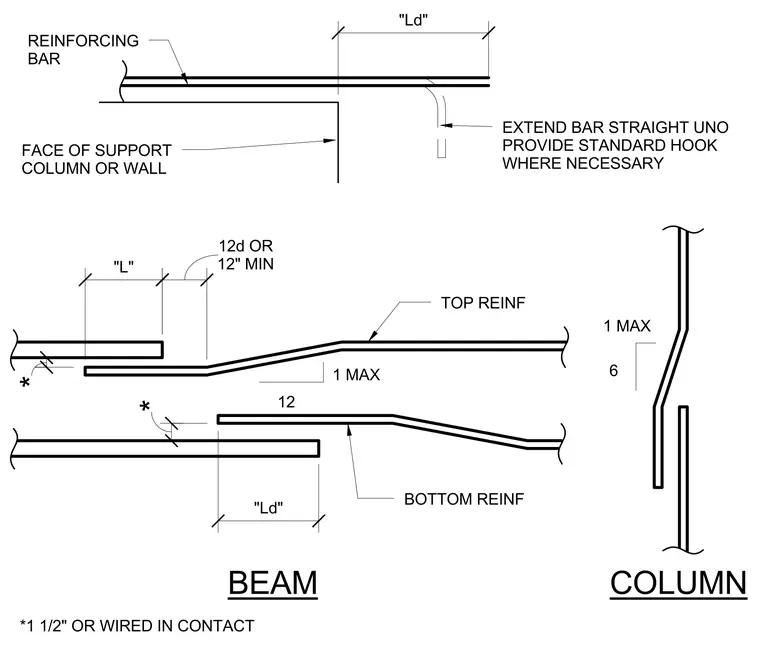

Reinforcing bars extend straight past the face of support column or wall with a development length of "Ld" or provide a standard hook where necessary. Bottom and top reinforcing bars lap splice with a length of "Ld" or twelve bar diameters with a twelve inch minimum, maintaining a maximum one inch offset and a one and one half inch spacing or wired in contact. Column vertical reinforcement offsets with a maximum one to six slope ratio for lap splicing.
COLUMN *1 1/2" OR WIRED IN CONTACT FACE OF SUPPORT COLUMN OR WALL REINFORCING BAR BOTTOM REINF 1 MAX 12 6 TOP REINF 1 MAX EXTEND BAR STRAIGHT UNO PROVIDE STANDARD HOOK WHERE NECESSARY "Ld" "L" 12" MIN 12d OR * * "Ld" BEAM
