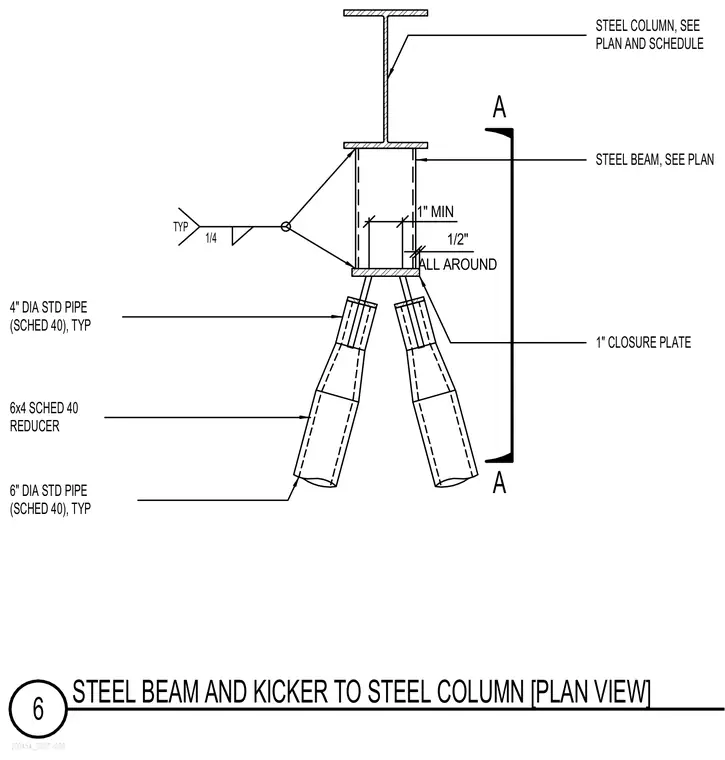

This structural plan detail shows steel kicker braces framing into a steel beam and column assembly. The support consists of a steel column and steel beam sized per plan and schedule. A one-inch closure plate connects the kickers to the structural member with a one-half-inch weld all around and a one-inch minimum clearance. The kicker braces are constructed from four-inch standard pipe schedule forty connected through six-by-four schedule forty reducers to six-inch standard pipe schedule forty typical members.
200454_S523-006 A A 6 STEEL BEAM AND KICKER TO STEEL COLUMN [PLAN VIEW] STEEL COLUMN, SEE PLAN AND SCHEDULE 6" DIA STD PIPE (SCHED 40), TYP 6x4 SCHED 40 REDUCER 4" DIA STD PIPE (SCHED 40), TYP TYP 1/4 STEEL BEAM, SEE PLAN 1" CLOSURE PLATE 1/2" ALL AROUND 1" MIN
