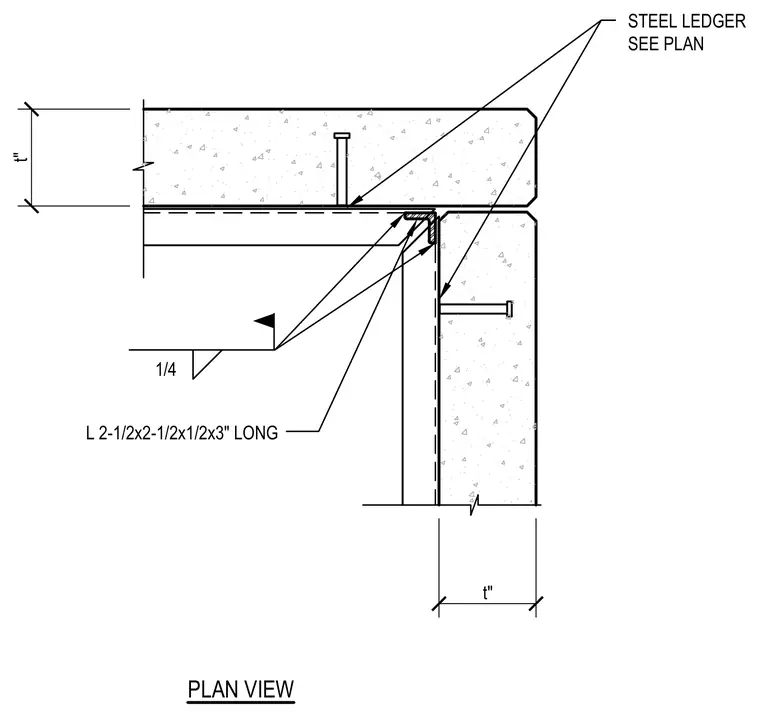

A steel ledger angle measuring two and a half inches by two and a half inches by one half inch by three inches long connects the precast concrete panels at the corner. A quarter-inch fillet weld secures the steel angle. Embedded anchors tie the steel ledger to the concrete panels sized per plan.
