Structural · S-C39Q2

Column Base Plate and Gusset Connection Detail

Elements

Connections

About this detail

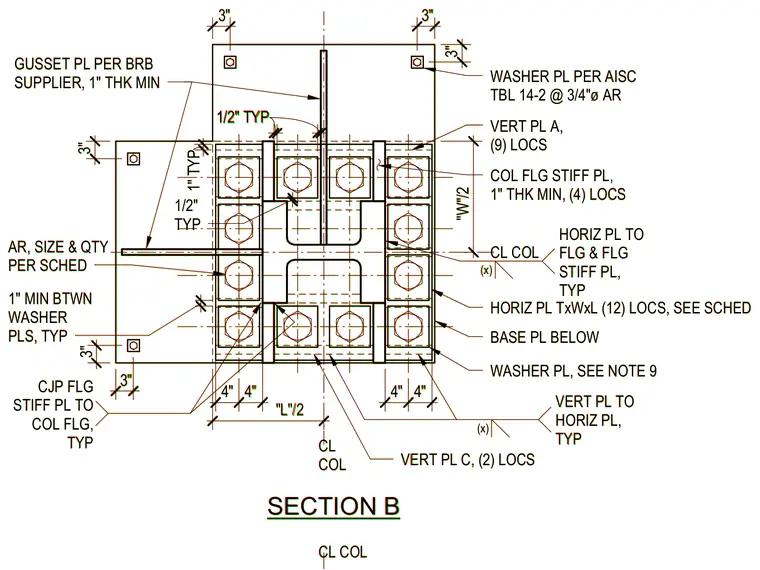

A column base plate assembly incorporates multiple stiffener plates and a gusset plate for a buckling-restrained brace. The column flange is reinforced with four typical one-inch minimum thick column flange stiffener plates welded with complete joint penetration welds. A gusset plate, one inch thick minimum per the brace supplier, connects to the assembly with vertical and horizontal plates sized per schedule. Twelve horizontal plates with dimensions TxWxL are secured across the flanges and flange stiffener plates. Washer plates sized per AISC Table 14-2 for three-quarter-inch diameter anchors are provided with a one-inch minimum spacing between adjacent washer plates.
