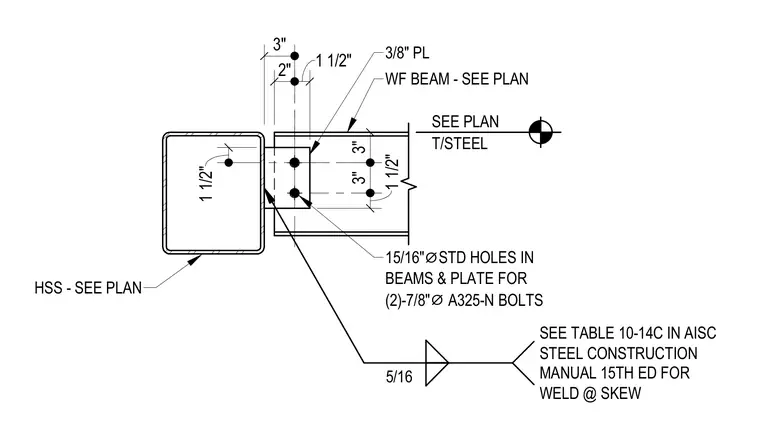

A wide flange beam connects to a hollow structural section column using a three-eighths-inch thick shear plate. The plate is welded to the hollow structural section column with a five-sixteenths-inch fillet weld, sized per the AISC Steel Construction Manual 15th Edition for skew. The wide flange beam web is fastened to the shear plate with two seven-eighths-inch diameter A325-N bolts through fifteen-sixteenths-inch standard holes. The wide flange beam size and top of steel elevation are sized per plan.
3" 3" 2" 1 1/2" 3/8" PL WF BEAM - SEE PLAN 5/16 15/16" ⌀ STD HOLES IN BEAMS & PLATE FOR (2)-7/8" ⌀ A325-N BOLTS SEE TABLE 10-14C IN AISC STEEL CONSTRUCTION MANUAL 15TH ED FOR WELD @ SKEW HSS - SEE PLAN 1 1/2" T/STEEL SEE PLAN 3" 1 1/2"
