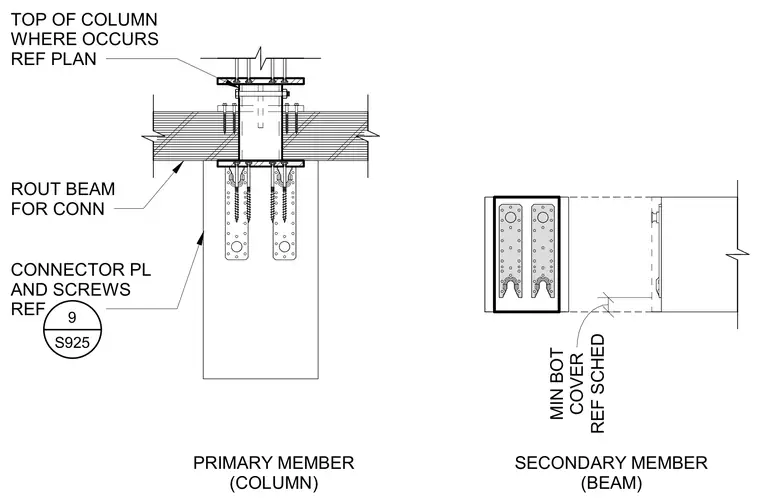

A double connector plate is fastened with screws to the primary column member and seated within a routed secondary beam. The assembly provides structural connection between the column and beam per the schedule and plan requirements. Connector plates and screws are positioned as detailed with reference to sheet S925.
REF SCHED MIN BOT COVER TOP OF COLUMN WHERE OCCURS REF PLAN ROUT BEAM FOR CONN CONNECTOR PL AND SCREWS REF PRIMARY MEMBER (COLUMN) SECONDARY MEMBER (BEAM) 9 S925
