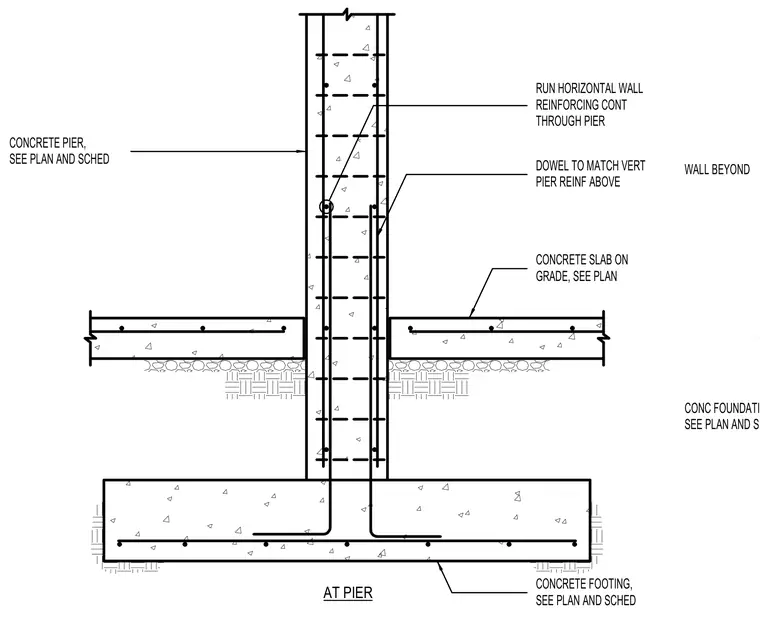

A concrete footing supports a vertical concrete pier reinforced with continuous horizontal wall reinforcing and vertical dowels matching the pier reinforcement above. A concrete slab on grade abuts the pier on both sides over a prepared subgrade. A concrete foundation wall is indicated beyond the pier.
CONCRETE FOOTING, SEE PLAN AND SCHED AT PIER CONCRETE SLAB ON GRADE, SEE PLAN DOWEL TO MATCH VERT PIER REINF ABOVE CONCRETE PIER, SEE PLAN AND SCHED RUN HORIZONTAL WALL REINFORCING CONT THROUGH PIER WALL BEYOND CONC FOUNDATION WALL, SEE PLAN AND SCHED
