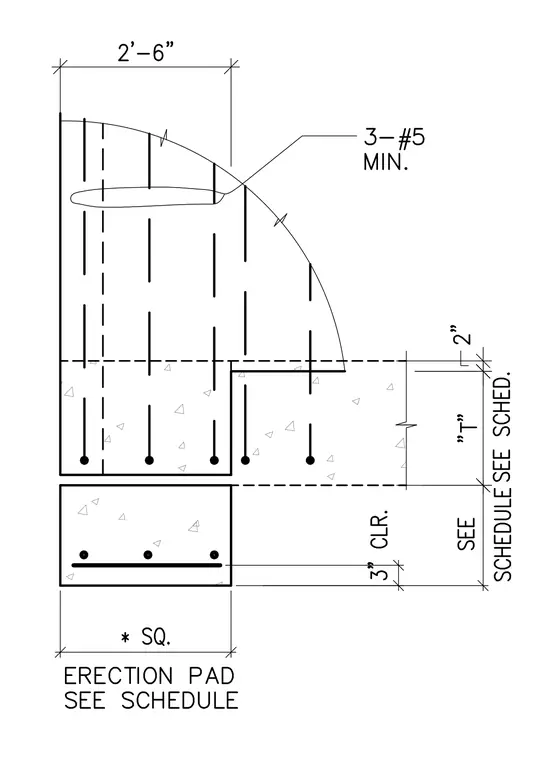

A precast concrete column bears onto a concrete erection pad sized per schedule with a square dimension. The column base incorporates three number 5 minimum reinforcing bars along with transverse ties. The erection pad features three longitudinal reinforcing bars with three inches of clear cover. Vertical dimensions indicate a two-inch clearance and a variable thickness designated as T per schedule.
