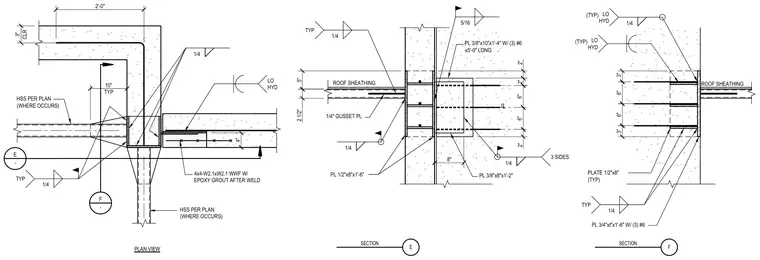

A hollow structural section strut connection incorporates embedded steel plates, gusset plates, and welded reinforcing elements within a concrete assembly. The plan view and sections E and F detail the interface between the HSS framing members per plan and the concrete edge, utilizing 1/2 inch by 8 inch plates, 3/8 inch by 8 inch by 1 foot 2 inch plates, and a 1/4 inch gusset plate. Reinforcing includes 4x4-W2.1xW2.1 welded wire fabric with epoxy grout placed after welding, along with embedded reinforcing bars grouted with low-hydration grout. Fillet welds of 1/4 inch and 5/16 inch size secure the steel plate connections across three sides as indicated.
HSS PER PLAN (WHERE OCCURS) 1/4 10" TYP 1/4 E - F - 2'-0" 4" LO HYD 4x4-W2.1xW2.1 WWF W/ EPOXY GROUT AFTER WELD 2" CL 8" PL 1/2"x8"x1'-6" PL 3/8"x8"x1'-2" ROOF SHEATHING PL 3/8"x10"x1'-4" W/ (3) #6 x5'-0" LONG 1/4" GUSSET PL 1/4 1/4 1/4 3 SIDES 5/16 2" 6" 6" 2" 2 1/2" 5" 6" 3" 3" 6" PL 3/4"xt"x1'-6" W/ (3) #6 ROOF SHEATHING PLATE 1/2"x8" (TYP) LO HYD (TYP) 1/4 1/4 TYP PLAN VIEW LO HYD (TYP) F SECTION E SECTION TYP HSS PER PLAN (WHERE OCCURS) TYP 3" CLR
