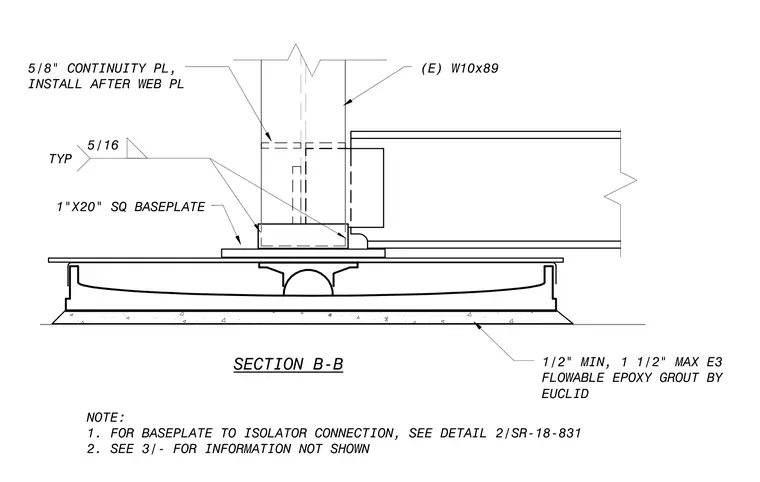

An existing W10x89 steel column connects to a one-inch by twenty-inch square base plate welded with five-sixteenth-inch typical fillet welds. A five-eighth-inch continuity plate is installed after the web plate. The entire assembly bears on an E3 flowable epoxy grout layer by Euclid ranging from one-half inch minimum to one and one-half inch maximum thickness over an isolator base.
(E) W10x89 SECTION B-B 1"X20" SQ BASEPLATE NOTE: 1. FOR BASEPLATE TO ISOLATOR CONNECTION, SEE DETAIL 2/SR-18-831 2. SEE 3/- FOR INFORMATION NOT SHOWN 1/2" MIN, 1 1/2" MAX E3 FLOWABLE EPOXY GROUT BY EUCLID 5/16 TYP 5/8" CONTINUITY PL, INSTALL AFTER WEB PL
