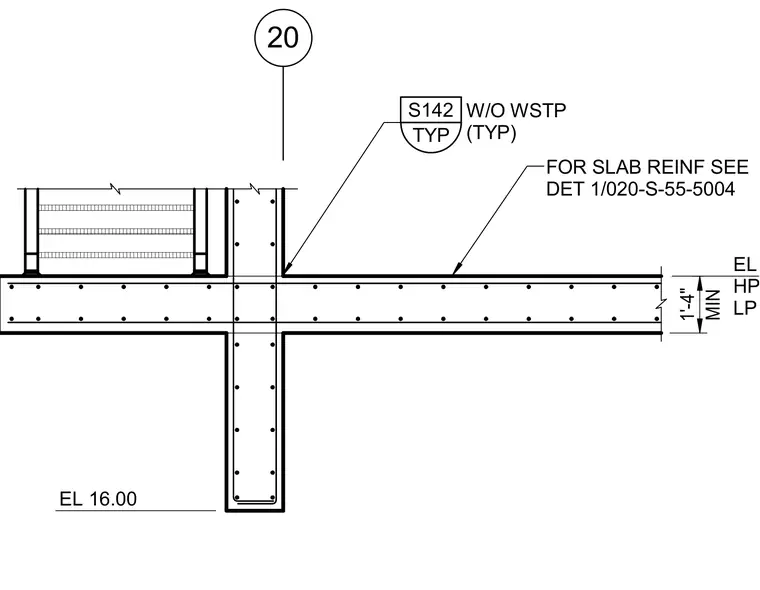

A reinforced concrete slab and supporting member junction features variable elevations, labeled with high point (HP) and low point (LP) designations. A minimum slab thickness of 1'-4" is maintained, with elevation markers referenced to elevation 16.00. Slab reinforcement is directed to a separate detail reference 1/020-S-55-5004, and standard connection callouts designate S142 without waterstop typical.
20 EL VARIES HP LP EL 21.34 MIN 1'-4" EL 16.00 FOR SLAB REINF SEE DET 1/020-S-55-5004 TYP S142 W/O WSTP (TYP)
