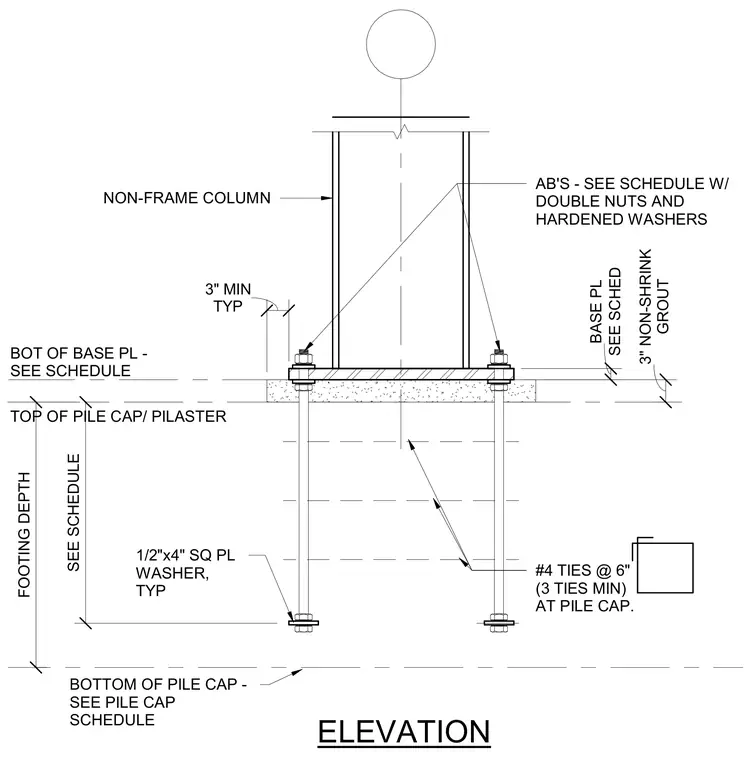

A non-frame column bears on a base plate set over three inches of non-shrink grout atop a concrete pile cap or pilaster. Anchor bolts feature double nuts, hardened washers, and a half-inch by four-inch square plate washer embedded at the bottom. Number four ties spaced at six inches with a minimum of three ties are provided at the pile cap.
BOT OF BASE PL - SEE SCHEDULE TOP OF PILE CAP/ PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS NON-FRAME COLUMN ELEVATION BOTTOM OF PILE CAP - SEE PILE CAP SCHEDULE 1/2"x4" SQ PL WASHER, TYP TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT PILE CAP.
