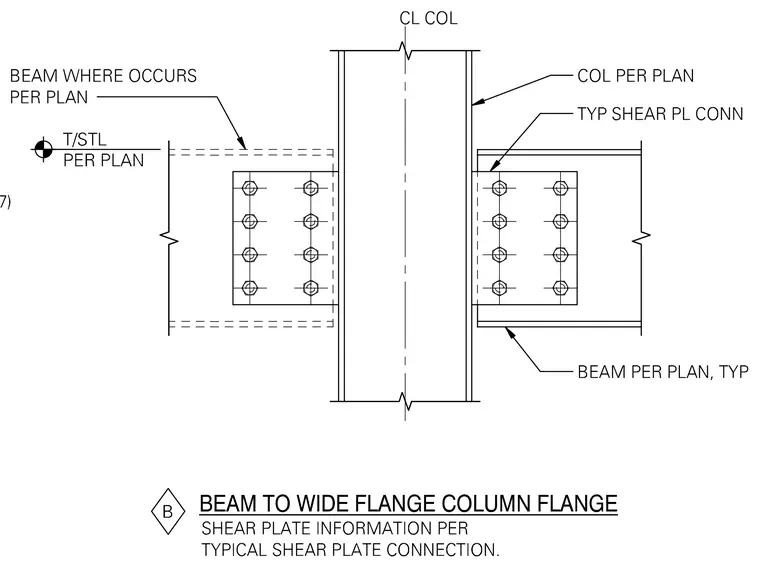

Steel framing connection detailing a wide flange beam framing into the flange of a wide flange column using a typical shear plate connection. Beams are sized per plan and occur on both sides of the column centerline. The connection utilizes a bolted shear plate shop-welded to the column flange and field-bolted to the beam web.
