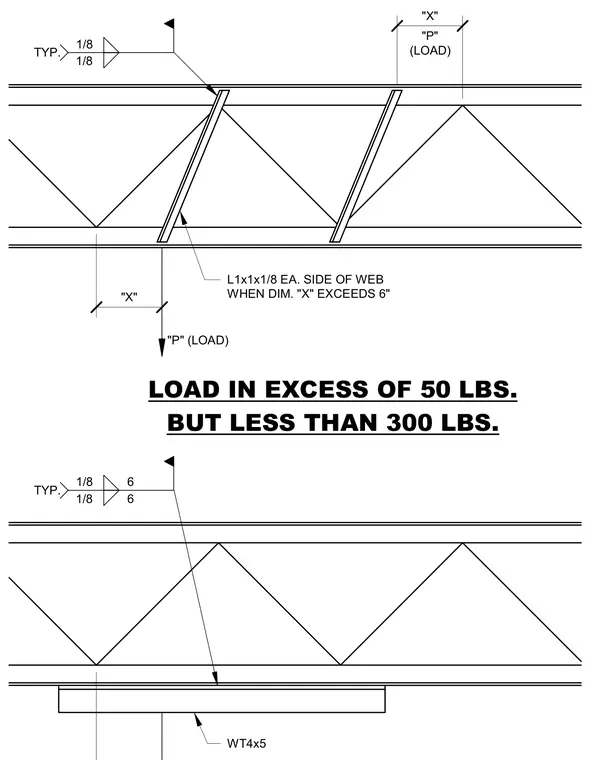

Structural reinforcement methods for open-web steel joists supporting concentrated loads between fifty and three hundred pounds. When dimension X exceeds six inches, L1x1x1/8 angles are installed on each side of the joist web with one-eighth-inch typical fillet welds. Alternatively, a WT4x5 section is welded to the bottom chord using one-eighth-inch welds spaced at six inches typical. These reinforcements distribute suspended equipment or piping loads into the joist framing safely.
"P" "X" "X" LOAD IN EXCESS OF 50 LBS. BUT LESS THAN 300 LBS. L1x1x1/8 EA. SIDE OF WEB WHEN DIM. "X" EXCEEDS 6" "P" (LOAD) (LOAD) 1/8 1/8 TYP. 1/8 6 1/8 6 TYP. WT4x5
