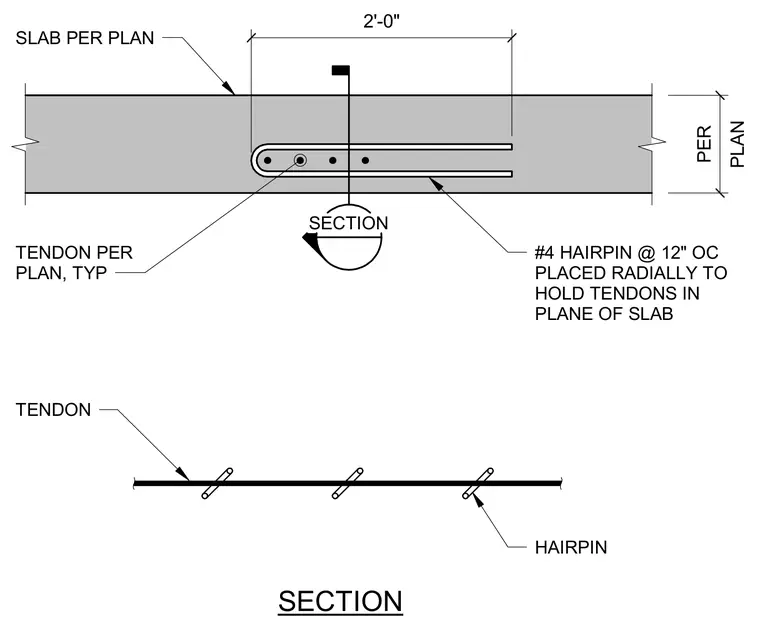

Number four hairpins are spaced at twelve inches on center and placed radially to hold post-tensioned tendons within the plane of the concrete slab. The hairpin measures two feet in length with the slab thickness sized per plan. Tendons are positioned within the slab per structural drawings. A section view shows the alignment of the hairpins relative to the tendon layout.
SECTION PLAN PER SLAB PER PLAN TENDON PER PLAN, TYP #4 HAIRPIN @ 12" OC PLACED RADIALLY TO HOLD TENDONS IN PLANE OF SLAB TENDON HAIRPIN 2'-0" SECTION
