A wide flange or hollow structural section column supports a beam per plan with a two-foot cantilever typical. A three-quarter-inch plate welded with five-sixteenths fillet welds connects to the top of the support, secured by four three-quarter-inch diameter machine bolts. A three-quarter-inch by twelve-inch splice plate of fifty ksi steel is provided on each side, centered on the splice with a one-half-inch maximum gap. Connections utilize A325-N high-strength bolts in horizontal short-slotted holes with sizes and quantities detailed in the schedule. Five-sixteenths fillet welds are applied near side and far side at the web splice, with typical bolt locations dimensioned at one and one-half inches.

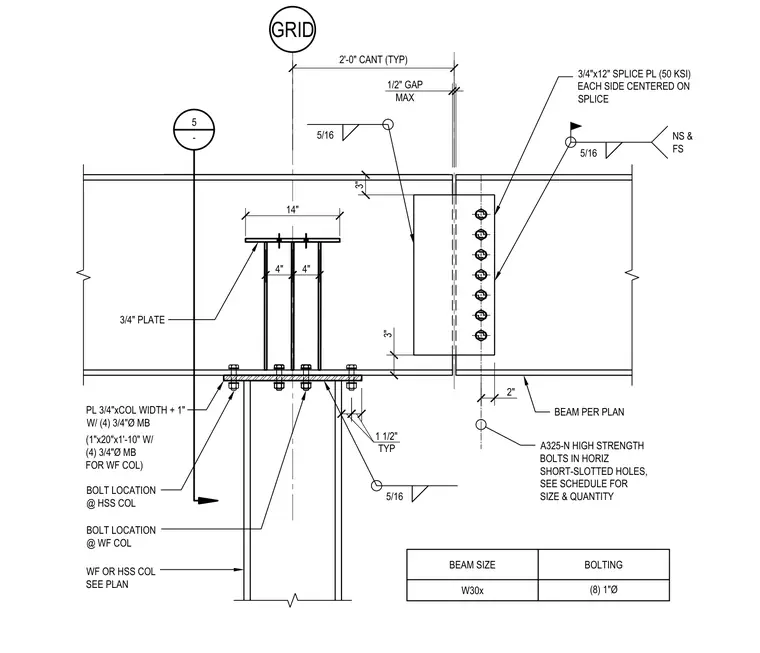

4" 4" 2" WF OR HSS COL SEE PLAN 2'-0" CANT (TYP) 3" 5/16 GRID 14" 3/4" PLATE 5/16 1/2" GAP MAX NS & FS 3/4"x12" SPLICE PL (50 KSI) EACH SIDE CENTERED ON SPLICE BEAM PER PLAN A325-N HIGH STRENGTH BOLTS IN HORIZ SHORT-SLOTTED HOLES, SEE SCHEDULE FOR SIZE & QUANTITY 5 - (1"x20"x1'-10" W/ (4) 3/4"Ø MB FOR WF COL) 5/16 3" PL 3/4"xCOL WIDTH + 1" W/ (4) 3/4"Ø MB 1 1/2" TYP BOLT LOCATION @ HSS COL BOLT LOCATION @ WF COL BEAM SIZE BOLTING W30x (8) 1"Ø
