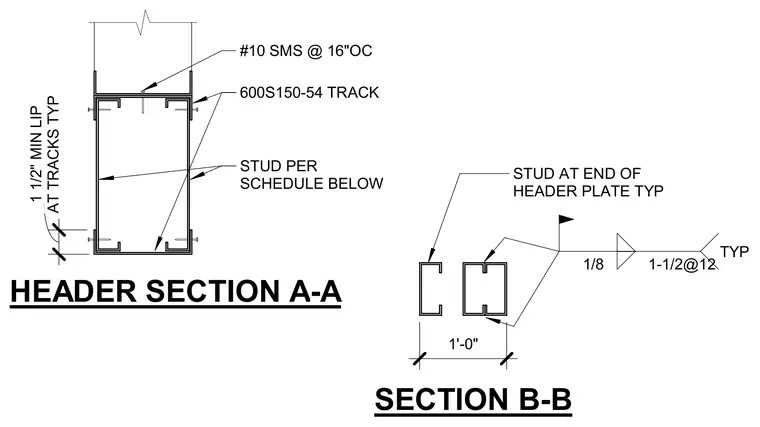

Cold-formed steel header framing comprises 600S150-54 tracks fastened with number ten sheet metal screws at sixteen inches on center. Framing studs match the schedule below and sit at the ends of the header plates with typical one and one-half inch minimum lip requirements at tracks. Section B-B details welded connections with one-eighth inch fillet welds spaced at twelve inches typically.
HEADER SECTION A-A SECTION B-B 600S150-54 TRACK STUD PER SCHEDULE BELOW STUD AT END OF HEADER PLATE TYP #10 SMS @ 16"OC AT TRACKS TYP 1 1/2" MIN LIP 1/8 1-1/2@12 TYP 1'-0"
