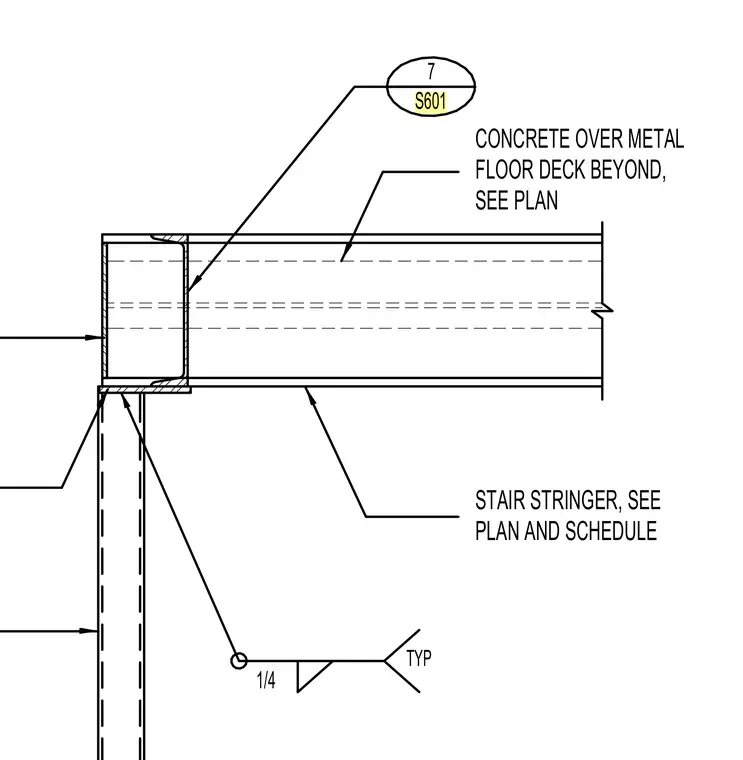

The stair stringer connects to the structural framing below a concrete over metal floor deck, with sizes and layout sized per plan and schedule. A typical quarter-inch fillet weld secures the structural components at the landing junction.
STAIR STRINGER, SEE PLAN AND SCHEDULE CONCRETE OVER METAL FLOOR DECK BEYOND, SEE PLAN 1/4 TYP 7 S601
