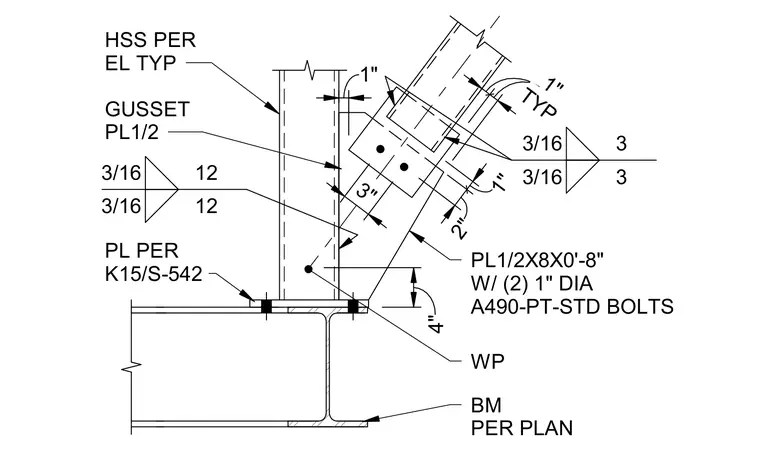

A half-inch thick gusset plate connects a hollow structural section to a supporting beam, sized per plan. The connection utilizes a plate measuring one half-inch by eight inches by eight inches, secured with two one-inch diameter A490 standard bolts. Three sixteenth-inch fillet welds are specified at the plate connections with twelve-inch and three-inch spacings. A base plate is welded to the beam per sheet K15/S-542.
GUSSET PL1/2 PL1/2X8X0'-8" W/ (2) 1" DIA A490-PT-STD BOLTS 3/16 12 3/16 12 3/16 3 3/16 3 PL PER V K15/S-542 BM PER PLAN WP HSS PER EL TYP 3" TYP 1" TYP 1" 1" 2" 1" 4"
