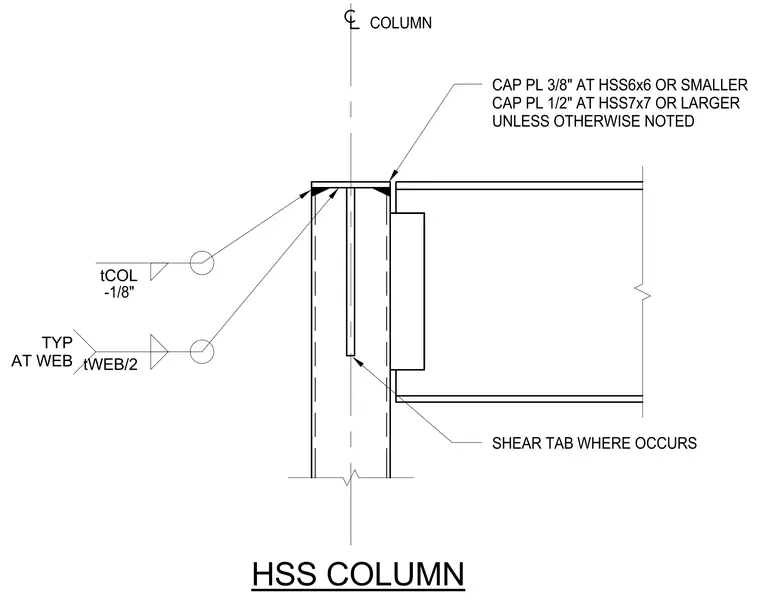

This hollow structural section column cap plate connection utilizes a three-eighths-inch thick cap plate for hollow structural sections six by six or smaller, and a half-inch thick cap plate for hollow structural sections seven by seven or larger unless noted otherwise. A shear tab is provided where indicated for framing attachment. Welds are specified with typical sizing based on the column and web thickness.
CAP PL 3/8" AT HSS6x6 OR SMALLER CAP PL 1/2" AT HSS7x7 OR LARGER UNLESS OTHERWISE NOTED SHEAR TAB WHERE OCCURS COLUMN tWEB/2 TYP AT WEB tCOL HSS COLUMN -1/8"
