Structural · S-BZ63E

Hollow Structural Section T-Connection and Elbow Details

Materials

Steel Stainless Steel Timber / Wood

Elements

Columns Connections / Plates Roof / Floor Openings

Connections

HSS Connection Welded Connection

About this detail

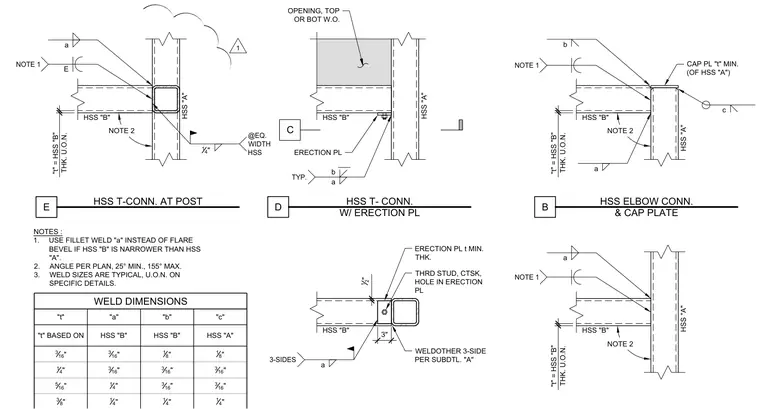

Various hollow structural section connections frame into structural posts and columns. Hollow structural section members A and B connect with welded joints, fillet welds, flare bevel welds, and custom weld dimensions specified in a tabular schedule. Erection plates with countersunk threaded studs provide temporary or permanent alignment support, and cap plates close off the tops of vertical hollow structural sections. Standard notes dictate weld substitution requirements when connecting narrower members, angular tolerances ranging from twenty-five to one hundred fifty-five degrees, and typical weld sizes unless otherwise noted on specific details.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
