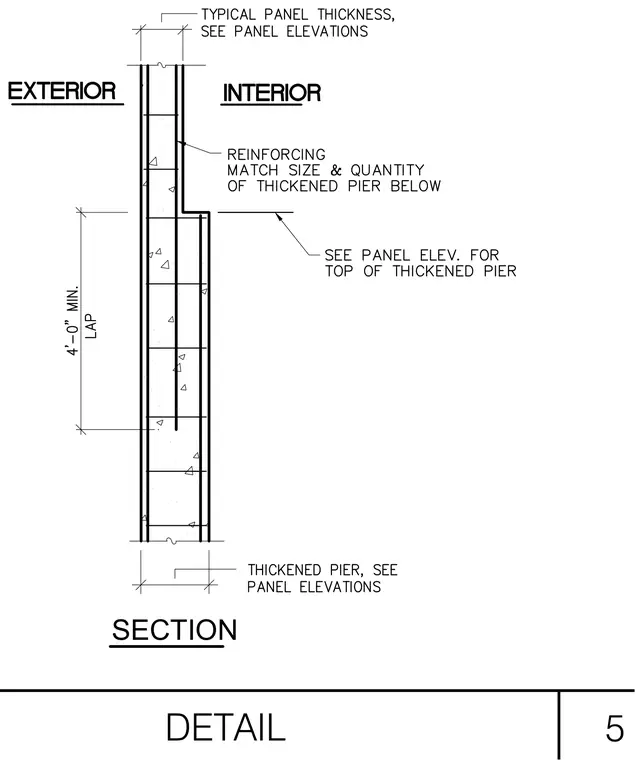

This concrete wall section details the vertical transition and reinforcing lap splice at a thickened pier. The exterior face maintains a uniform thickness while the interior steps out to form the thickened pier below. Vertical reinforcing bars extend through the transition with a four foot zero inch minimum lap splice. Reinforcing size and quantity match the thickened pier below per panel elevations.
