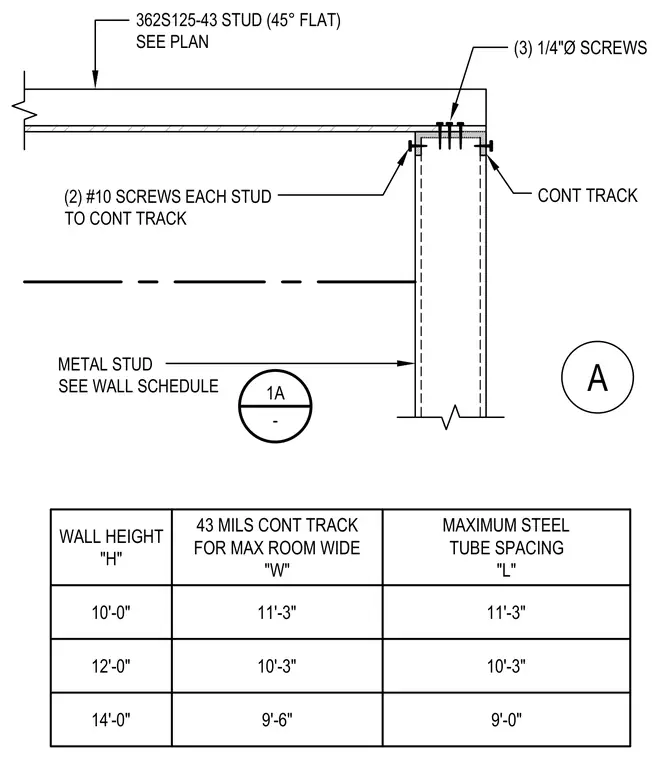

A 43-mil continuous steel track connects to framing members using three quarter-inch diameter screws. Metal studs are fastened to the continuous track with two number-ten screws at each stud. A 362S125-43 cold-formed steel stud is installed at a forty-five-degree flat angle per plan. A corresponding schedule relates maximum wall heights from ten to fourteen feet to room widths and steel tube spacings.
1A - A WALL HEIGHT "H" 43 MILS CONT TRACK FOR MAX ROOM WIDE "W" MAXIMUM STEEL TUBE SPACING "L" 10'-0" 11'-3" 11'-3" 12'-0" 10'-3" 10'-3" 14'-0" 9'-6" 9'-0" 362S125-43 STUD (45° FLAT) SEE PLAN (3) 1/4"Ø SCREWS CONT TRACK (2) #10 SCREWS EACH STUD TO CONT TRACK METAL STUD SEE WALL SCHEDULE
