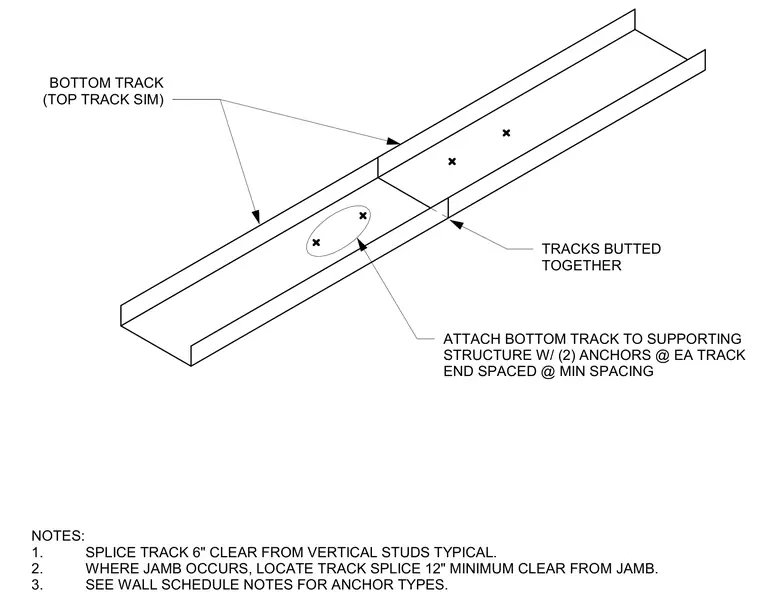

Two cold-formed steel bottom tracks are butted together end-to-end and attached to the supporting structure with two anchors at each track end spaced at minimum spacing. The track splice is positioned six inches clear from vertical studs typically, and twelve inches minimum clear from any jamb. Anchor types are specified per the wall schedule notes.
BOTTOM TRACK (TOP TRACK SIM) ATTACH BOTTOM TRACK TO SUPPORTING STRUCTURE W/ (2) ANCHORS @ EA TRACK END SPACED @ MIN SPACING NOTES: 1. SPLICE TRACK 6" CLEAR FROM VERTICAL STUDS TYPICAL. 2. WHERE JAMB OCCURS, LOCATE TRACK SPLICE 12" MINIMUM CLEAR FROM JAMB. 3. SEE WALL SCHEDULE NOTES FOR ANCHOR TYPES. TRACKS BUTTED TOGETHER
