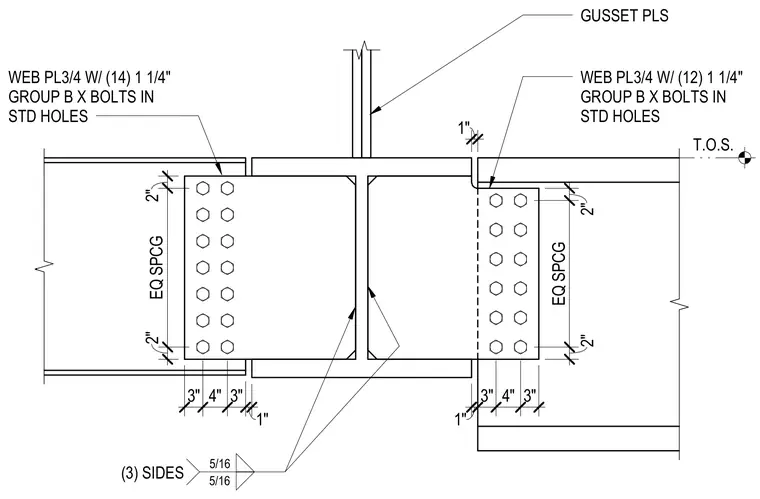

This structural connection detail features steel framing members joined by three-quarter-inch thick web plates and gusset plates. The left side utilizes fourteen one-and-a-quarter-inch Group B X bolts installed in standard holes, with five-sixteenth-inch fillet welds applied to three sides. The right side employs twelve one-and-a-quarter-inch Group B X bolts in standard holes with equal bolt spacing dimensions. The configuration accommodates high-load transfer through bolted web connections and gusset plate reinforcement.
WEB PL3/4 W/ (12) 1 1/4" GROUP B X BOLTS IN STD HOLES T.O.S. 3" 4" 3" 1" 2" EQ SPCG 2" 1" GUSSET PLS 1" 3" 4" 3" 2" EQ SPCG 2" WEB PL3/4 W/ (14) 1 1/4" GROUP B X BOLTS IN STD HOLES (3) SIDES 5/16 5/16
