Structural · S-BY9EN

Davit Post Connection at Steel Column and Roof Beam

Materials

Elements

Columns Beams Roofs Decks Anchors / Embeds Reinforcing

About this detail

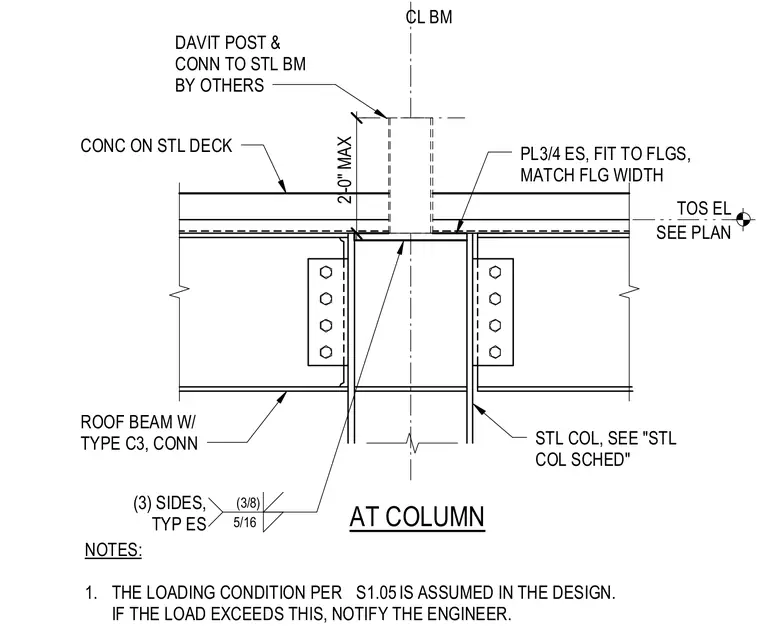

A structural steel column supports framing configured per the steel column schedule, with roof beams attached using a type C3 connection. A three-quarter-inch plate matching the flange width is fitted to the flanges on three sides with five-sixteenths and three-eighths fillet welds. A davit post connects to the steel beam by others with a two-inch maximum clearance. Concrete on steel deck bears above, aligned with the top of steel elevation detailed per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
