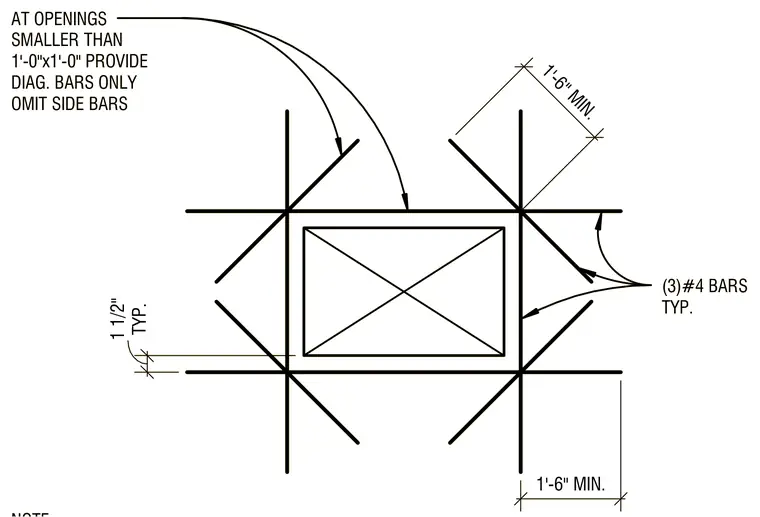

This detail specifies the reinforcing bar placement around openings in a concrete slab over metal deck. Three number four bars are placed typically along each side of the opening, with one-and-a-half-inch typical spacing. For openings smaller than one foot by one foot, diagonal bars are provided only and side bars are omitted. All diagonal bars require a one-foot-six-inch minimum extension beyond the opening corners.
(3)#4 BARS TYP. AT OPENINGS SMALLER THAN 1'-0"x1'-0" PROVIDE DIAG. BARS ONLY OMIT SIDE BARS 1'-6" MIN. TYP. 1 1/2" 1'-6" MIN. (3)#4 BARS TYP. AT OPENINGS SMALLER THAN 1'-0"x1'-0" PROVIDE DIAG. BARS ONLY OMIT SIDE BARS 1'-6" MIN. TYP. 1 1/2" 1'-6" MIN.
